How do GFCI outlets work?

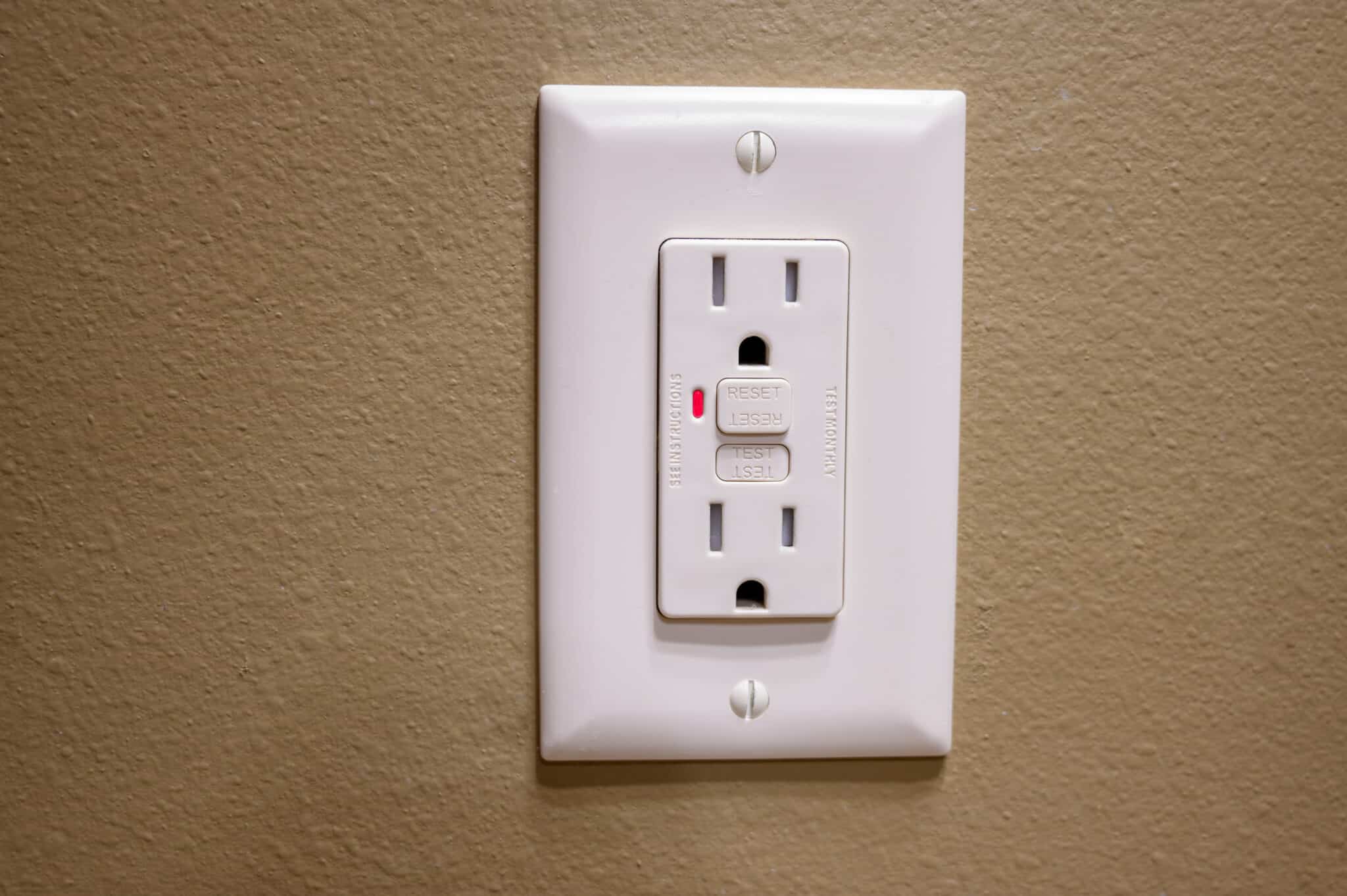

GFCI outlet.

Have you ever wondered what GFCI outlets are and why they are essential for your home?

Ground Fault Circuit Interrupter (GFCI) outlets are specialized electrical outlets to protect you from electrical shocks and reduce the risk of electrical fires. These outlets are crucial in areas where electricity and water are in close proximity, such as bathrooms, kitchens, and outdoor spaces.

By continuously monitoring the electrical current, GFCI outlets can detect imbalances and quickly shut off power to prevent serious injury or damage, ensuring a safer environment for you and your family.



What are GFCI Outlets?

GFCI outlets continuously monitor the flow of electricity through a circuit. If they detect even a small imbalance between the hot and neutral wires, indicating a potential ground fault, they quickly shut off power to the outlet. This rapid response can prevent serious injury or even save lives by cutting off electricity before it reaches dangerous levels.

The importance of Ground Fault Circuit Interrupter (GFCI) outlets in home safety cannot be overstated. Electrical shocks can occur when a person comes into contact with an electrical source while grounded, such as standing on a wet floor or using an appliance with a faulty cord. GFCI outlets act as a safeguard by interrupting the flow of electricity within milliseconds of detecting a fault, significantly reducing the risk of electrocution.

In addition to protecting against shocks, Ground Fault Circuit Interrupter (GFCI) outlets help prevent electrical fires. Faulty wiring, damaged appliances, or overloaded circuits can lead to electrical arcing, which can ignite surrounding materials and cause a fire. By shutting off power in the event of a fault, Ground Fault Circuit Interrupter (GFCI) outlets reduce the likelihood of such dangerous occurrences, contributing to overall home safety.



How Do GFCI Outlets Work?

Basic Mechanism Explained

Understanding how GFCI outlets work can help you appreciate their role in home safety. The basic mechanism of a GFCI outlet involves monitoring the electrical current flowing through a circuit.

Under normal conditions, the current flowing into an appliance through the hot wire should be equal to the current returning through the neutral wire. If there is any imbalance, it suggests that some current is leaking, potentially through a person who is being shocked.

When a GFCI outlet detects this imbalance, even one as small as 4 to 5 milliamps, it reacts quickly. The outlet interrupts the electrical circuit, cutting off the flow of electricity within as little as 1/40th of a second. This swift action can prevent serious injury from electric shock or reduce the risk of electrical fires caused by short circuits.



Internal Components Overview

Inside a GFCI outlet, several key components work together to provide protection. These include a differential transformer, a circuit breaker, and a test/reset button.

  • Differential Transformer: This component monitors the current balance between the hot and neutral wires. If it detects an imbalance, it triggers the circuit breaker.
  • Circuit Breaker: Activated by the differential transformer, the circuit breaker interrupts the electrical circuit, stopping the flow of electricity to the outlet.
  • Test/Reset Buttons: These buttons allow you to manually test the GFCI functionality and reset the outlet after it has tripped. Regular testing ensures that the GFCI outlet remains operational and capable of protecting you from electrical faults.

By combining these components, Ground Fault Circuit Interrupter (GFCI) outlets provide a reliable and effective way to enhance electrical safety in your home.



Where Are GFCI Outlets Required?

Residential Applications

In residential settings, Ground Fault Circuit Interrupter (GFCI) outlets are crucial for ensuring safety in areas where electrical circuits are likely to come into contact with water. According to the National Electrical Code (NEC), GFCI protection is required in the following areas:

  • Bathrooms: Given the presence of water, GFCI outlets are essential to prevent electrical shocks.
  • Kitchens: Any outlet servicing countertops should have GFCI protection due to the potential for water spills and the use of various electrical appliances.
  • Garages: Since garages often contain tools and equipment that may come into contact with water or damp conditions, Ground Fault Circuit Interrupter (GFCI) outlets are necessary.
  • Basements: Finished and unfinished basements require Ground Fault Circuit Interrupter (GFCI) outlets to mitigate the risk of electric shocks in a potentially moist environment.
  • Laundry Rooms: With washing machines and utility sinks, Ground Fault Circuit Interrupter (GFCI) outlets help ensure safety.
  • Outdoor Areas: All outdoor outlets must be GFCI-protected to safeguard against moisture and weather exposure.



Commercial and Industrial Uses

GFCI outlets are equally important in commercial and industrial settings where the risk of electrical hazards can be even greater due to the presence of heavy machinery and various electrical devices. Key areas requiring GFCI protection include:

  • Commercial Kitchens: Similar to residential kitchens, these areas need Ground Fault Circuit Interrupter (GFCI) outlets to protect against the risks associated with frequent use of water and electrical appliances.
  • Construction Sites: Temporary power sources on construction sites must have GFCI protection to ensure the safety of workers.
  • Healthcare Facilities: Outlets in patient care areas and around medical equipment must have GFCI protection to prevent electrical shocks.
  • Industrial Plants: Areas where water and electrical equipment are used in conjunction, such as wash-down stations, need Ground Fault Circuit Interrupter (GFCI) outlets.

These requirements help ensure a safer working environment and reduce the likelihood of electrical accidents.



GFCI outlets.
Photo from iStock – Credit: Steven White

Benefits of Using GFCI Outlets

Enhanced Safety Features

Ground Fault Circuit Interrupter (GFCI) outlets are packed with features that significantly enhance electrical safety in both residential and commercial environments. One of the most important safety features is their ability to detect ground faults and immediately cut off power.

 This rapid response is crucial in preventing electrical shocks, which can be life-threatening. By monitoring the balance of electrical current and shutting down the circuit when an imbalance is detected, Ground Fault Circuit Interrupter (GFCI) outlets provide a critical layer of protection.

Additionally, Ground Fault Circuit Interrupter (GFCI) outlets often come with built-in test and reset buttons. These buttons allow users to ensure that the outlet is functioning correctly. Regular testing of GFCI outlets is recommended to maintain their protective capabilities, and the reset function makes it easy to restore power after a fault is detected and resolved.



Prevention of Electrical Shocks

One of the primary benefits of GFCI outlets is their effectiveness in preventing electrical shocks. Traditional circuit breakers protect wiring and appliances from damage due to overloads and short circuits but do not prevent shocks. Ground Fault Circuit Interrupter (GFCI) outlets, however, are designed specifically to protect people from the dangerous effects of electric shock.

When a ground fault occurs, such as when an electrical current leaks to the ground through a person’s body, the GFCI outlet senses this and trips the circuit almost instantaneously. This quick action can prevent severe injuries or even fatalities, especially in areas where water is present, which increases the risk of electric shock.

Beyond residential use, the prevention of electrical shocks is equally important in commercial and industrial settings. Workers in these environments often operate in conditions where they are at greater risk of encountering ground faults, making GFCI protection essential for workplace safety.



How to Identify GFCI Outlets

Visual Indicators

Identifying Ground Fault Circuit Interrupter (GFCI) outlets in your home or workplace is straightforward due to their distinct features. The most obvious visual indicator is the presence of two buttons on the face of the outlet, typically labeled “Test” and “Reset.” These buttons are often colored red and black or simply stand out in contrast to the outlet cover, making them easy to spot.

Additionally, many Ground Fault Circuit Interrupter (GFCI) outlets have a small indicator light that shows whether the outlet is functioning correctly. This light is usually green when the outlet is operational and red or unlit when there is a problem or the GFCI has tripped. The indicator light provides a quick visual check to confirm that the outlet is ready to provide protection.



Testing and Resetting Procedures

Regularly testing your Ground Fault Circuit Interrupter (GFCI) outlets ensures they are working correctly and can protect you from electrical shocks. Here’s a simple step-by-step guide to testing and resetting GFCI outlets:

  1. Press the Test Button: Locate the “Test” button on the GFCI outlet and press it. This action simulates a ground fault by creating a small imbalance in the electrical current, causing the outlet to trip. You should hear a clicking sound, and the power to the outlet will be cut off, indicated by any connected devices losing power.
  2. Check the Reset Button: After pressing the “Test” button, the “Reset” button should pop out. This indicates that the GFCI outlet has successfully tripped and shut off the electrical current.
  3. Press the Reset Button: To restore power to the outlet, press the “Reset” button. This action will reset the GFCI outlet, and the connected devices should regain power. If the outlet does not reset or the reset button does not stay engaged, there may be a problem with the outlet that requires professional inspection.
  4. Verify with an Indicator Light: If your GFCI outlet has an indicator light, check to ensure it returns to the “on” position or green color after resetting.

Performing these tests monthly ensures that your GFCI outlets are functioning correctly and will protect you in case of an electrical fault.



Installing GFCI Outlets

Tools and Materials Needed

Installing Ground Fault Circuit Interrupter (GFCI) outlets is a manageable DIY project if you have the right tools and materials. Before starting, gather the following items:

  • GFCI outlet(s)
  • Screwdriver (flathead and Phillips)
  • Wire stripper/cutter
  • Voltage tester
  • Electrical tape
  • Wire nuts
  • Needle-nose pliers
  • Outlet cover plate

Having these tools on hand will ensure a smooth installation process and help you achieve a safe, professional result.



Step-by-Step Installation Guide

  1. Turn Off the Power: Before beginning any electrical work, turn off the power to the circuit you will be working on at the main breaker panel. Use a voltage tester to confirm that the power is off by testing the wires in the outlet box.
  2. Remove the Existing Outlet: Unscrew the faceplate of the existing outlet and remove the mounting screws that secure the outlet to the electrical box. Gently pull the outlet out of the box to expose the wiring.
  3. Disconnect the Wires: Take note of how the wires are connected to the existing outlet. There should be a black (hot) wire, a white (neutral) wire, and a bare or green (ground) wire. Disconnect these wires by loosening the terminal screws and pulling the wires away from the outlet.
  4. Prepare the Wires: If the wire ends are damaged or frayed, use the wire stripper to trim and strip about 3/4 inch of insulation from the ends of each wire. Twist the exposed wire ends to ensure they are neat and tight.
  5. Connect the Wires to the GFCI Outlet: Identify the line and load terminals on the GFCI outlet. The line terminals are for the incoming power, while the load terminals provide GFCI protection to downstream outlets. Connect the black wire to the brass-colored line terminal, the white wire to the silver-colored line terminal, and the ground wire to the green ground screw. If you are protecting additional outlets downstream, connect the corresponding wires to the load terminals.
  6. Secure the Outlet: Carefully fold the wires back into the electrical box and secure the GFCI outlet with the mounting screws. Make sure the outlet is firmly attached and sits flush with the wall.
  7. Attach the Faceplate: Screw the faceplate onto the outlet, ensuring it covers the outlet box completely.
  8. Restore Power and Test the Outlet: Turn the power back on at the main breaker panel. Test the GFCI outlet by pressing the “Test” button to ensure it trips and cuts off power. Press the “Reset” button to restore power. Use the voltage tester to confirm that the outlet is functioning correctly.

Following these steps will help you safely install GFCI outlets and enhance the electrical safety of your home.



Common Issues with GFCI Outlets

Troubleshooting Tips

While Ground Fault Circuit Interrupter (GFCI) outlets are highly reliable, they can occasionally experience issues that need troubleshooting. Here are some common problems and how to address them:

  1. Outlet Won’t Reset: If the GFCI outlet doesn’t reset after pressing the reset button, there might be a ground fault or a problem with the wiring. First, make sure the circuit breaker is on and supplying power. Then, check for any loose or damaged wires and ensure all connections are secure. If the outlet still won’t reset, consider replacing it or consulting an electrician.
  2. Frequent Tripping: Ground Fault Circuit Interrupter (GFCI) outlets are designed to trip when they detect a ground fault. However, if an outlet trips frequently without an apparent cause, it could indicate an issue with the connected appliance, a short circuit, or an overload on the circuit. Unplug all devices and reset the outlet. If it trips again, try isolating the problem by plugging in devices one at a time. If the outlet continues to trip, there may be a deeper electrical issue that requires professional assistance.
  3. No Power to Outlet: If the GFCI outlet isn’t providing power, check the breaker panel to ensure the circuit hasn’t tripped. Next, test the outlet with a voltage tester to confirm it’s receiving power. If the outlet has power but isn’t functioning, it might be defective and need replacement.
  4. Buzzing or Humming Noise: A buzzing or humming noise from a GFCI outlet can be a sign of a loose connection or a faulty outlet. Turn off the power and inspect the wiring for any loose connections. If the noise persists after tightening the connections, the outlet may need to be replaced.



Solutions for Frequent Problems

  1. Rewiring a GFCI Outlet: If an outlet is not working properly due to wiring issues, rewiring might be necessary. Ensure the power is off before making any adjustments. Follow the manufacturer’s wiring instructions carefully, ensuring that the line and load wires are connected to the correct terminals.
  2. Replacing a Faulty GFCI Outlet: If the outlet continues to malfunction despite troubleshooting efforts, replacing it is often the best solution. Purchase a new GFCI outlet and follow the installation steps outlined previously. Make sure to test the new outlet to confirm it’s working correctly.
  3. Addressing Moisture Issues: In areas prone to moisture, such as bathrooms and outdoor locations, ensure that the GFCI outlet is weather-resistant and properly sealed to prevent water ingress. Using weatherproof covers can also help protect outdoor outlets.

Regular maintenance and prompt attention to issues, along with professional electrician services, can help ensure that your Ground Fault Circuit Interrupter (GFCI) outlets remain effective in providing essential electrical safety.



FAQ Banner with Blue and Orange Typography
Photo from iStock – Credit: HowLettery

Frequently Asked Questions about GFCI Outlets

  1. What does a GFCI outlet do?

    A GFCI (Ground Fault Circuit Interrupter) outlet protects against electrical shock by monitoring the flow of electricity in a circuit. If it detects an imbalance, indicating a ground fault, it quickly shuts off power to prevent injury.



  1. Where are GFCI outlets required in a home?

    Ground Fault Circuit Interrupter (GFCI) outlets are required in areas where electrical circuits are likely to come into contact with water. This includes bathrooms, kitchens, garages, basements, laundry rooms, and outdoor areas.



  1. How often should I test my GFCI outlets?

    You should test your Ground Fault Circuit Interrupter (GFCI) outlets at least once a month to ensure they are functioning correctly. This can be done by pressing the “Test” button and then the “Reset” button to confirm the trip and restore power properly.



  1. Can I install GFCI outlets myself, or should I hire a professional?

    While installing Ground Fault Circuit Interrupter (GFCI) outlets can be a manageable DIY project for those with basic electrical knowledge, it’s important to follow proper safety procedures. Ensure the power is turned off before starting, and double-check all wiring connections.



  1. Why does my GFCI outlet keep tripping?

    Frequent tripping of a GFCI outlet can be caused by several factors, including ground faults, overloaded circuits, or faulty appliances. To troubleshoot, unplug all devices connected to the outlet and reset it. Then, plug in each device one at a time to identify the source of the problem.
